Understanding the Basics of Powder Coating
What Is Powder Coating?
Powder coating is a dry method used to finish surfaces. It is very popular in factories. A fine powder, made of resin, color particles, and other ingredients, is applied to an object. The powder sticks to the surface using static electricity. Then, it is heated to create a strong, even layer. This technique is liked for its speed, eco-friendly nature, and ability to make top-notch finishes.
Main Ingredients in Powder Coating
The recipe for powder coatings has several key parts:
Resins: These form the base of the coating. They decide how strong or flexible it is.
Pigments: These give the coating its color and thickness.
Additives: These improve certain features, like smoothness or protection from sunlight.
Curing Agents: These help the coating harden during heating.
Each part must be carefully chosen. They need to work together to get the right results.
The Role of Mixing in Powder Coating
Why Even Mixing Matters
Even mixing makes sure all ingredients spread out equally in the powder. This is vital for steady color, feel, and strength in the final coating. Poor mixing can cause problems. For example, you might see color patches, weak sticking, or a fragile finish.

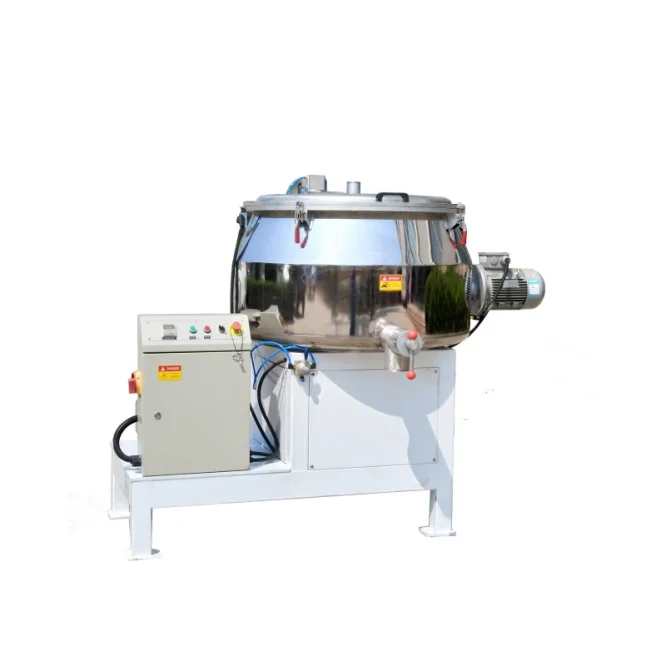

The High Speed Mixer is a great tool for this job. It is mainly applied in the mixture of epoxy polyester static electricity powder coating, being an ideal machine for providing power, agitating lump materials with low speed, and high speed mixing, applicable for industries such as powder coating, pharmacy, food, dye and building materials, etc. Therefore, this machine is applied widely the production of static electricity powder coating.
After the materials mixed in the High Speed Mixer, start the agitating speed reducer, then the materials form three-dimensional space fog eddy flow ring under the effect of the agitating machine. For the formed eddy flow ring, the materials can reach the purpose of high speed mixing to have improved the mixing efficiency and uniformity.
Types of Mixers Used by Powder Coating Line Manufacturers
Powder coating line manufacturers use different mixers for production:

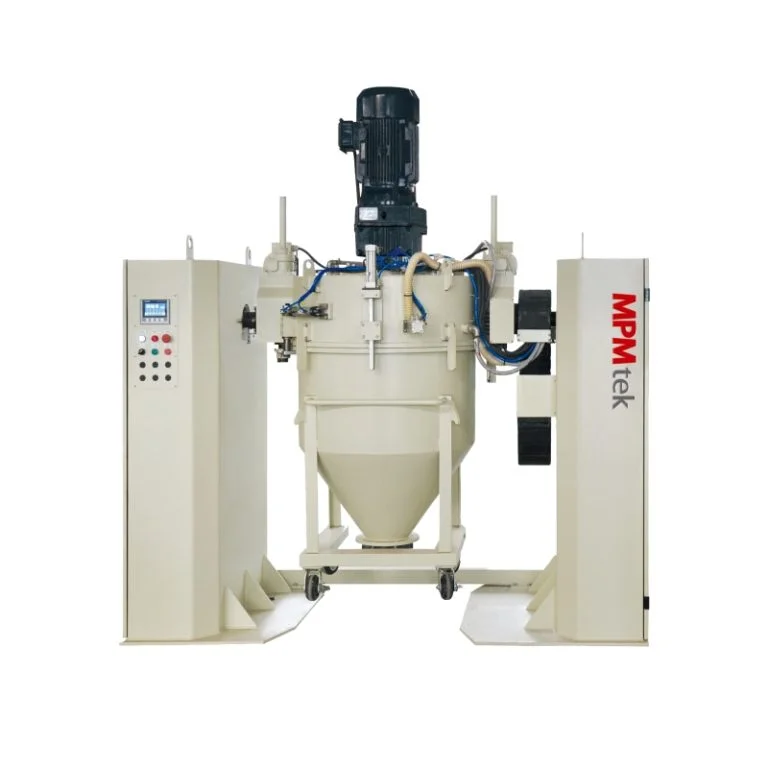

Container Mixers: These are flexible and efficient. They use movable containers to blend ingredients. They often have PLC controls for automation.
High-Speed Mixers: These mix ingredients quickly.
Lab Scale Mixers: These are for testing in small batches. They help develop new coatings before full production.
For example, MPMtek’s Lab Scale Container Mixer gives precise control over mixing. It is easy to clean and stays reliable during use.
Challenges in Mixing Evenly
Getting steady mixing can be tough. Ingredients may have different sizes or weights. This makes blending hard. Also, wrong machine settings or wear can cause uneven mixing. Modern mixers with smart controls help fix these issues. They adjust speed, heat, and other settings during mixing.
The Process of Extrusion in Powder Coating
What Are Twin Screw Extruders?
Extrusion is a key step in making powder coatings. Mixed ingredients are melted and blended into a smooth mass. Twin screw extruders are commonly used for this. They perform better than other machines.

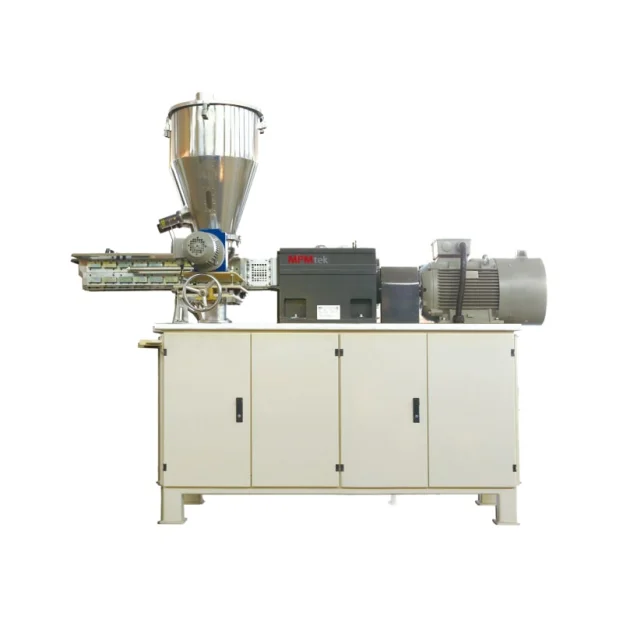

Twin Screw Extruder is designed with two co-rotating screw-shafts, Raw materials are perfectly to be dispersed and distributed by precise kneading-elements with high speed in the barrel. Twin Screw Extruder is very important equipment for powder coatings processing
How Twin Screw Extruders Improve Extrusion
Twin screw extruders have many benefits:
Even Mixing: The screws spread color particles and additives evenly.
Self-Cleaning: The screws wipe themselves. This stops hard bits from building up.
Accurate Heat Control: Multiple heating zones keep the right temperature, within ±2°C.
Long Life: Strong alloy steel parts last a long time.
MPMtek’s twin screw extruders can be customized. Their screw parts are designed for specific powder coating needs.
Tips for Using Twin Screw Extruders
To get the best results with twin screw extruders:
Set up screw parts based on the ingredients’ properties.
Check and maintain parts like kneading blocks and liners often.
Watch temperature settings closely. Use PLC systems for accuracy.
Use feeders like MPMtek’s FTSE Twin-Screw Feeder. They help feed light materials evenly.
By following these tips, powder coating line manufacturers can keep quality high. They also reduce machine downtime.
Advanced Methods in Mixing and Extrusion
Achieving Accuracy and Speed with Modern Tools
Accuracy and speed are crucial in powder coating production. The process has many steps. Ingredients are blended, melted, and shaped into a final product. Modern tools like twin screw extruders and container mixers make this easier.
Twin screw extruders use two rotating screw shafts. They spread ingredients evenly with precise kneading parts. This ensures a uniform product. Their self-cleaning feature stops hard bits from sticking to the screws. This saves time on cleaning.
Container mixers prepare ingredients before extrusion. They stir and crush materials at high speeds. This makes them ready for the next step. These mixers have safety systems and PLC controls. Workers can automate tasks and keep things reliable.
Modern tools also control heat well. Twin screw extruders have heating zones that keep temperatures steady, within ±2°C. This keeps the materials’ quality consistent.
Customization is a big plus. Screw parts and kneading blocks can be adjusted for different powder coating recipes. This helps powder coating line manufacturers adapt to various needs. It boosts output and quality.
Quality Control in Mixing and Extrusion
Ensuring Steady Powder Coatings
Quality control is vital in powder coating production. Steady results across batches need careful attention. Even mixing is key. It ensures color particles, resins, additives, and curing agents are well-blended.
Advanced container mixers help with this. They have double seals on shafts to stop leaks or contamination. They are easy to clean between batches. This lowers the risk of mixing different recipes.
During extrusion, twin screw extruders keep things consistent. Their kneading parts spread ingredients evenly. This leads to steady color and texture in the final coating.
Heat control during extrusion is critical. Too much or too little heat can harm the coating. It may not stick well or could be weak. Modern twin screw extruders have heating and cooling systems. They manage temperatures across zones for steady results.
Regular maintenance is also important. Parts like kneading blocks, liners, and shafts need checks. This prevents wear that could affect quality.
Testing Methods for Checking Quality
Testing is a big part of keeping powder coatings top-notch. Different methods check things like color, sticking power, hardness, and strength.
Visual Checks: Workers look at coatings under special lights. This spots uneven color. It may show mixing or extrusion issues.
Adhesion Tests: Tape is stuck to the cured coating and pulled off. This checks if the coating peels or flakes. It shows if the coating sticks well.
Hardness Tests: Tools like pencil hardness testers check if the coating resists scratches. Impact testers check for dents. These show the coating’s strength.
Durability Tests: These mimic sunlight, humidity, or temperature changes. They test how the coating holds up over time. This finds weak spots.
Microscope Analysis: Scanning electron microscopy (SEM) looks closely at the coating’s surface. It shows details about texture and particle spread.
By using these tests, powder coating line manufacturers ensure high standards. Their coatings perform well in many uses.
Frequently Asked Questions
What Are Twin Screw Extruders Used For?
Twin screw extruders spread and mix ingredients during powder coating production. Their kneading parts ensure even blending.
Why Is Even Mixing Important?
Even mixing spreads color particles and additives equally. This is key for steady color, texture, and strength in coatings.
How Do Modern Mixers Improve Speed?
Modern mixers, like container mixers, have smart designs. They use automation and seals to prevent contamination. This makes blending faster and cleaner.
Why Is Heat Control Important in Extrusion?
Accurate heat control stops overheating or under-curing. It keeps the coating’s quality steady during production.
For tailored solutions or more details about advanced machinery from Yuanli MPM Machinery Co., Ltd., reach out!
