Introduction
Powder clumping ranks among the top headaches in powder coating production. Right after extrusion, certain mixes form soft lumps or sticky bits, messing up particle flow and leading to flawed coatings. This piece dives into the reasons behind clumping and ways to tweak process settings for steady, top-notch powder.
What “Clumping” Means in Extruded Powder
Clumping shows up as soft bunches, gooey strings, or lumpy sheets fresh out of the extruder. It ties back to how the surface stays warm and picks up moisture while cooling down. Hot extrudate doesn’t solidify fast enough, so particles stick together. Sometimes, it’s just a light tackiness; other times, big clumps form that jam up the works.
Why It Matters
- Inconsistent particle sizes during grinding.
- Feeding hiccups in later machines.
- Rough finishes on coated items.
These issues waste time and materials. No one wants rework in a busy shop.
Main Causes of Powder Clumping
1. Excessive Melt Temperature
Barrel or die temps run too high, and resins remain sticky way longer. The extrudate fuses before it cools off properly. It’s like overcooking dough; everything glues up.
2. Improper Cooling and Conveyor Design
Short cooling belts or weak airflow let heat linger. Powders clump while flaking. Ever seen a belt that’s too crowded? It turns into a mess fast.
3. Overfilled Extruder or Unstable Feed Rate
Feed jumps around, causing pressure spikes and uneven shear. Spots melt more than they should. Steady input keeps things smooth, but surges throw it off.
4. Poor Formulation Balance
Extra curing agent or resins that melt low boost stickiness after extrusion. Balance matters a lot here. Tweaking the mix can fix a ton of problems downstream.
Process Adjustments to Eliminate Clumping
1. Control the Extrusion Temperature Curve
Keep zones steady along the extruder. Aim for the start zone just under the resin’s softening point, say around 80-100°C for many polyesters. Ramp up gradually to avoid hot spots. Check gauges often; a small drift can snowball into clumps.
2. Optimize Screw Speed and Torque
Boost screw speed to cut residence time and curb over-shearing. For example, if torque hits 70-80%, ease back on speed to prevent melt buildup. Operators tweak this on the fly, watching for smooth output. It’s trial and error sometimes, but data logs help nail it.
3. Ensure Efficient Cooling and Flake Separation

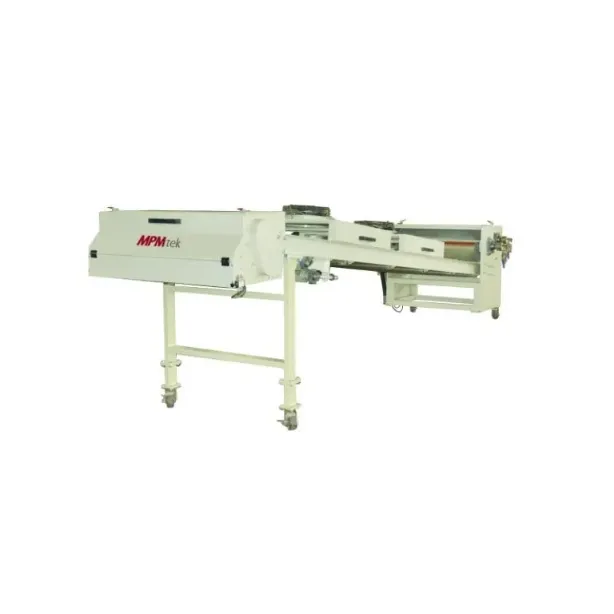

Place air knives right to blast cool air evenly. Set belt speed so flakes thin out, maybe 2-5 mm thick. That helps release heat quick. Modern cooling conveyor designs from MPMtek demonstrate how airflow direction and belt temperature control can minimize powder adhesion before milling. Don’t skimp on this step; it’s where many setups fail.
4. Maintain Consistent Feeding
Gravimetric feeders shine here, dosing precisely without overloads. Auto monitors catch dips or spikes early. Volumetric ones work okay, but gravity-based systems cut variability. In humid spots, dry the feed first to dodge extra moisture woes.
Equipment and Design Considerations
1. Screw Configuration and Venting
Twin screw setups mix better and vent volatiles out. Ports pull off gases that trap heat or cause bubbles. Single screws lag in homogeneity, leading to uneven melts. Vents are key in high-resin loads.
2. Material of Cooling Surface
Stainless belts transfer heat steady but might stick more than aluminum ones, which cool faster and release easier. Pick based on your resin type. Aluminum handles abrasives well too.
3. Integration Between Extruder and Cooling Conveyor
Sync extrusion rate with conveyor pull to avoid backups. Mismatched speeds pile up hot material, prime for clumping. In integrated systems engineered by MPMtek, extrusion and cooling modules operate in real-time sync to stabilize throughput and minimize product adhesion. It’s about flow, not just machines sitting side by side.
On a side note, older lines jury-rigged together often highlight this issue the hard way, with operators scrambling to adjust manually.
Practical Maintenance Tips
1. Keep Die and Belt Surfaces Clean
Buildup from residues amps up stickiness. Schedule cleans weekly or after runs. Hot spots from old gunk remelt fresh output. Use soft brushes; harsh scrapers nick surfaces.
2. Monitor Ambient Conditions
Shop humidity above 50% slows solidification. Temp swings do the same. Dehumidifiers help in muggy climates. It’s easy to overlook, but weather outside sneaks in through doors.
3. Regularly Check Cooling Air Filters and Fans
Clogged filters weaken airflow, spotting uneven cooling. Fans fail quietly sometimes. Monthly checks prevent those sneaky clump returns. Replace parts before they quit mid-run.
Advanced Solutions and Future Direction
Smart sensors track temps in real time, tweaking as needed. AI controls adjust belt speeds on the spot for varying loads. Automation ties it all together, spotting trends before clumps form. Clumping isn’t just about materials; it’s system-wide optimization. As powder coating technology evolves, solutions like MPMtek’s integrated cooling and control systems are helping manufacturers achieve more consistent output with fewer process interruptions.
Looking ahead, predictive maintenance apps could flag issues from vibration data alone. Exciting stuff for efficiency hounds.
Conclusion
Clumping post-extrusion looks small, but it hits quality and output hard. With tight temp controls, solid cooling, and smart designs, shops churn out uniform powder for grinding and beyond. Tackle it step by step, and results improve fast.
FAQ
Q: What if clumping only happens with certain colors?
A: Pigments can shift melt points. Test formulations separately and adjust temps down 5-10°C for tricky ones.
Q: How do I know if my extruder is overfilled?
A: Watch for torque spikes or uneven extrudate. Feed rate should match screw capacity, usually 80% max.
Q: Is humidity the biggest ambient factor?
A: Yes, but dust plays a role too. Clean air intake cuts contamination that worsens sticking.
Q: Can I retrofit old conveyors for better cooling?
A: Absolutely. Add air knives or extend belts. Consult specs to match your throughput.
Q: Why does faster screw speed help sometimes but not always?
A: It reduces heat buildup, but too fast shears resins wrong. Balance with torque readings.
