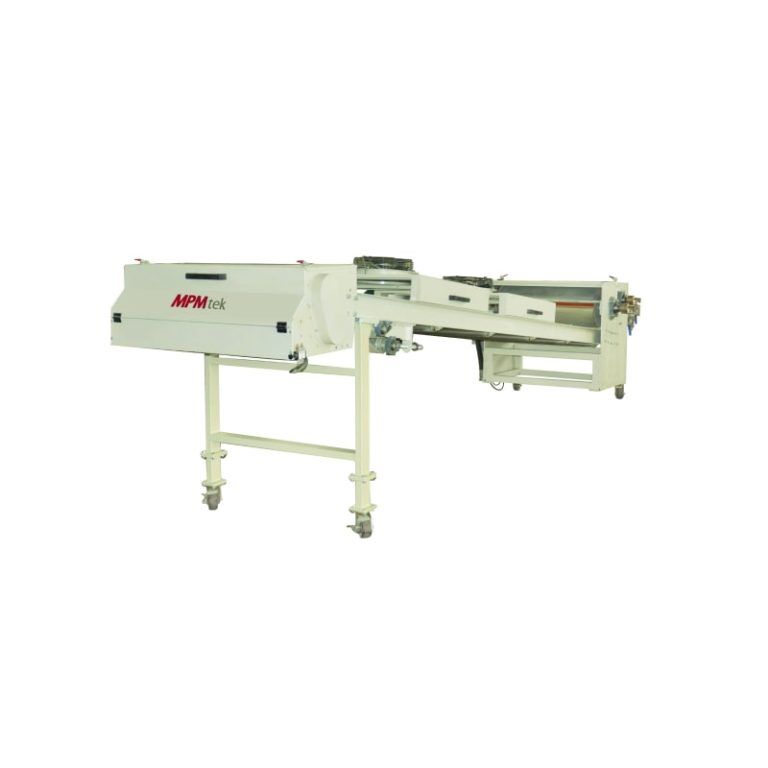

Air Cooling BELT(Rubber) is composed of cooling rollers, artificial rubber conveyor, crusher and cooling-air system. Thermos-melting material from extruder is rolled to be sheet for 1-2mm by cooling rollers, and being cooled down on the rubber conveyor to ambient temperature by cooling air, then being crushed into chips and discharged.
Product characteristics:
·Air-cooling
·Conveyor is made of anti-static, heatproof and flame-resistant artificial rubber
·Chip thickness is adjustable and size is uniform
·Low power consumption
·Comprehensive safety protection system
·Easy clean and maintenance
·High reliability
·High performance price ratio
| Model | Output(kg/h) | Diameter of roller (mm) | Belt Length(mm) | Belt width (mm) | Main Power(kw) | Dimension L*W*H(mm) |
| CCR-100 | 100 | 240 | 2000 | 400 | 0.55 | 4000x1500x1300 |
| CCR-200 | 200 | 270 | 4000 | 600 | 0.75 | 4600x1600x1400 |
| CCR-400 | 400 | 370 | 5000 | 900 | 1.1 | 5600x1700x1500 |
| CCR-600 | 600 | 420 | 6000 | 1000 | 1.5 | 6600x1800x1500 |
| CCR-800 | 800 | 470 | 6000 | 1200 | 2.2 | 6600x2000x1600 |
| CCR-1000 | 1000 | 550 | 7000 | 1200 | 3 | 7800x2000x1600 |
