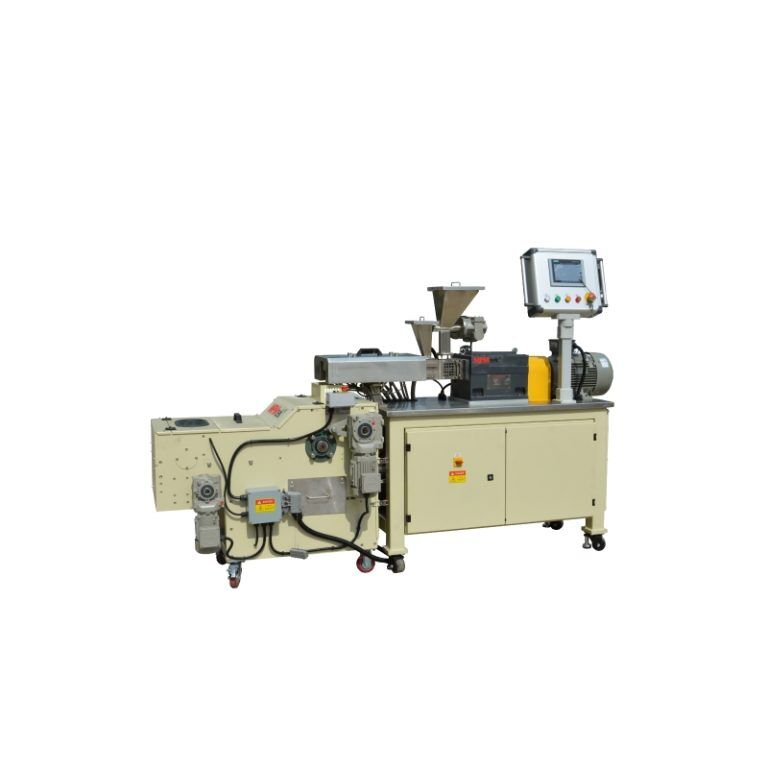

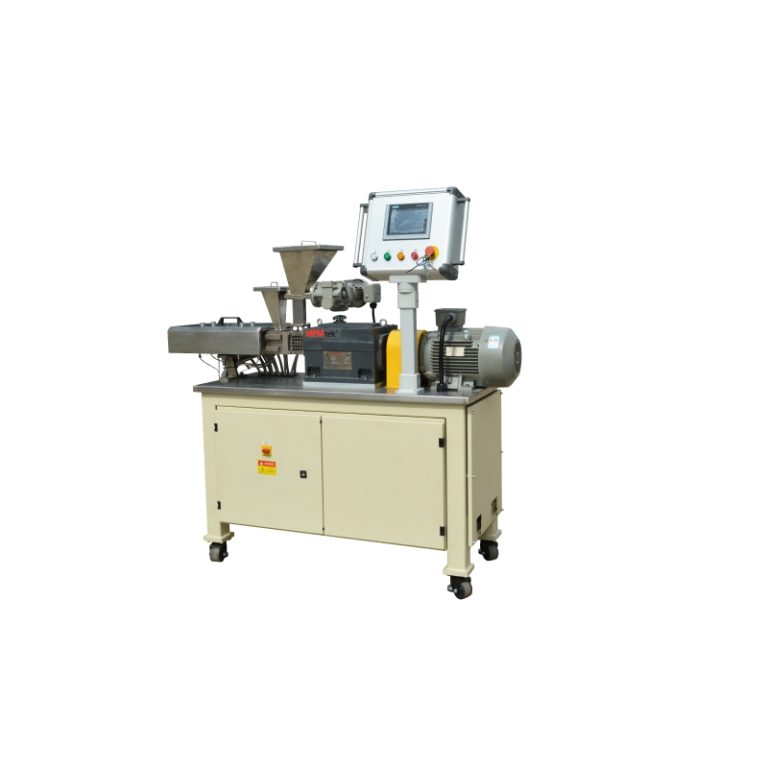

Laboratory Twin Screw Extruder

The TSE-26 is an ideal twin screw extruder for laboratory R&D work to obtain optimal formula and production parameters. It simulates the running parameters of MPM’s production extruders accurately.

Product parameter

Model Capacity Kg/h Screw diameter(mm) Screw LD Screw speed (rpm) Main motor kw Heating power kW Dimension(mm)
TSE-26B 40 26 18 520 4 3 1600*580*1440
TSE-26C 40 26 24 520 5.5 4 1700*580*1440



Product characteristics:

·Clamshell barrel for easy access to the screws and shafts for cleaning and maintenance

·Accurate temperature control

·Segmented insert type liners to reduce maintenance costs

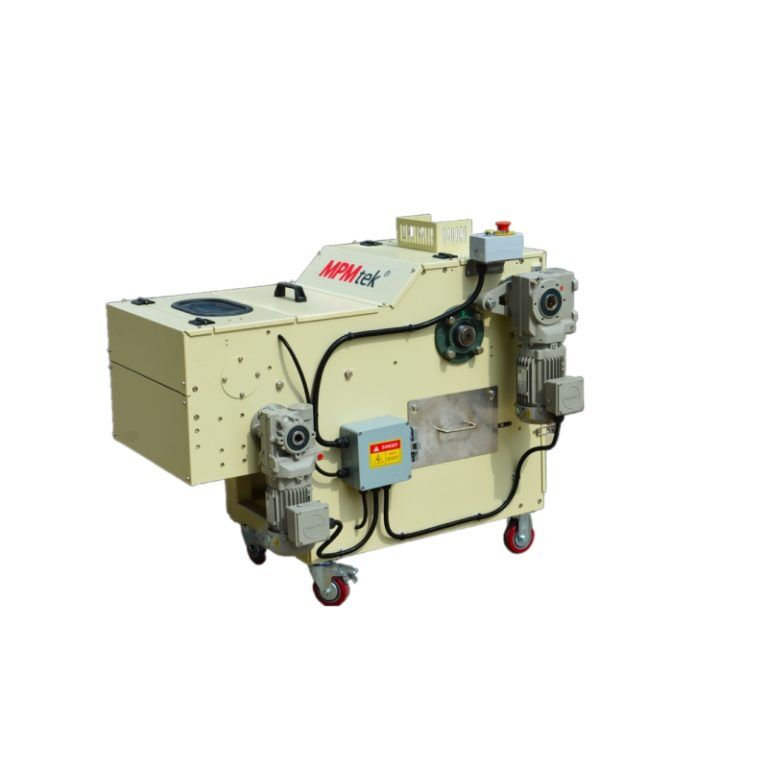

·Compact chill roller/crusher is integrated into the extruder

·PLC control with simple touchscreen interface

·High efficient

·Low noise and maintenance
