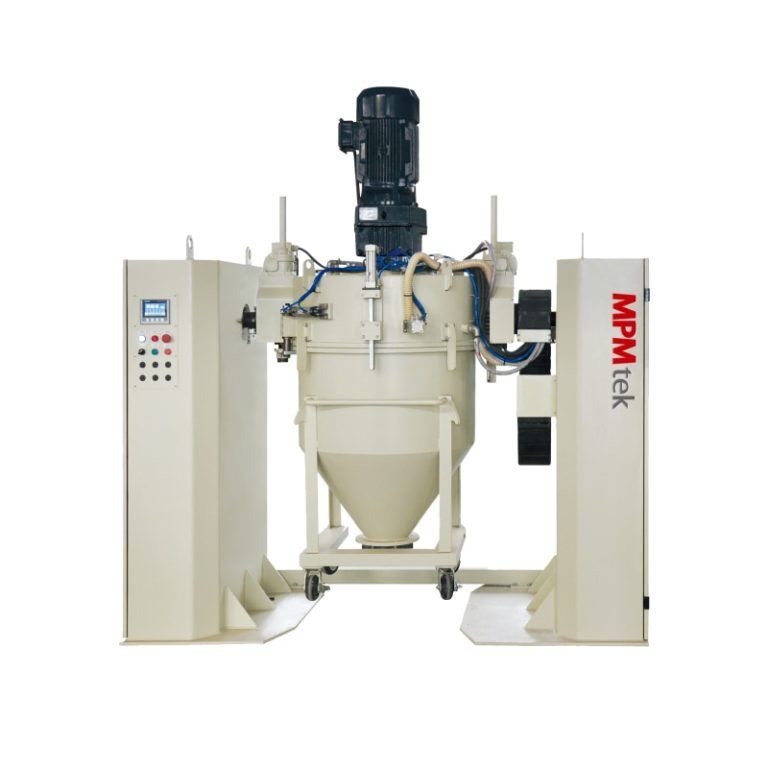

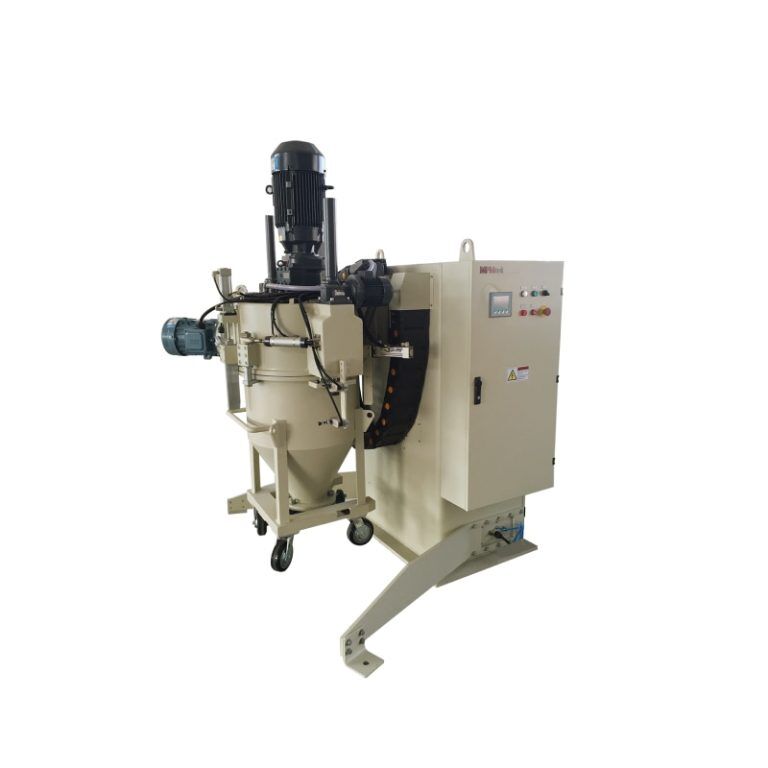

Container Mixer is an offline mixing machine with movable containers, using for mixing raw materials. The container loaded with raw materials is pushed to the original-work station, to be lifted, connected and locked to the mixing-head automatically. The raw material is to be mixed homogenously by stir and high-speed crusher while the mixing-head tilts 180 degree to the working position. The container will be back to original position and separate from mixing-head when the mixing process finished, The container mixer is automatically controlled by PLC & HMl. The container mixer is flexible equipment for production with high utilization. Mixing efficiently and homogeneously, easy to clean.
Product characteristics:
ยทFlexible off-line equipment for production with high utilization
ยทMixing efficiently and homogeneously
ยทMulti-containers used to operation, easy to clean and change color
ยทDouble-seals for shaft, no powder leakage, no solidified particle
ยทCooling water jacket equipped for mixing head (option)
ยทAutomatic dust vacuum
ยทPLC&ย HMIย for automatic control
ยทComprehensive safety protection system
ยทEasy to maintenance
ยทHigh reliability
| Model | Container Capacity(L) | Work Capacity(L๏ผ | Stirrer Power(KW) | Chopper Power(KW) | Lift Power(KW) | Tilt Power(KW) | Discharge port(mm) | Dimension L* W*H(mm) |
| CMR-150 | 150 | 120 | 7.5 | 3 | 2×0.37 | 0.37 | โ 150 | 2000x1800x2200 |
| CMR-300 | 300 | 240 | 11 | 4 | 2×0.55 | 0.75 | โ 250 | 2500x1500x2400 |
| CMR-450 | 450 | 360 | 15 | 4 | 2×0.55 | 0.75 | โ 250 | 2150x1600x2600 |
| CMR-700 | 700 | 560 | 22 | 5.5 | 2×0.75 | 1.5 | โ 250 | 3100x1800x2900 |
| CMR-1000 | 1000 | 800 | 30 | 7.5 | 2×1.1 | 1.5 | โ 250 | 3600x2100x3400 |
| CMR-2000 | 2000 | 1600 | 55 | 2×7.5 | 2×1.5 | 2.2 | โ 300 | 4200x2700x3900 |
