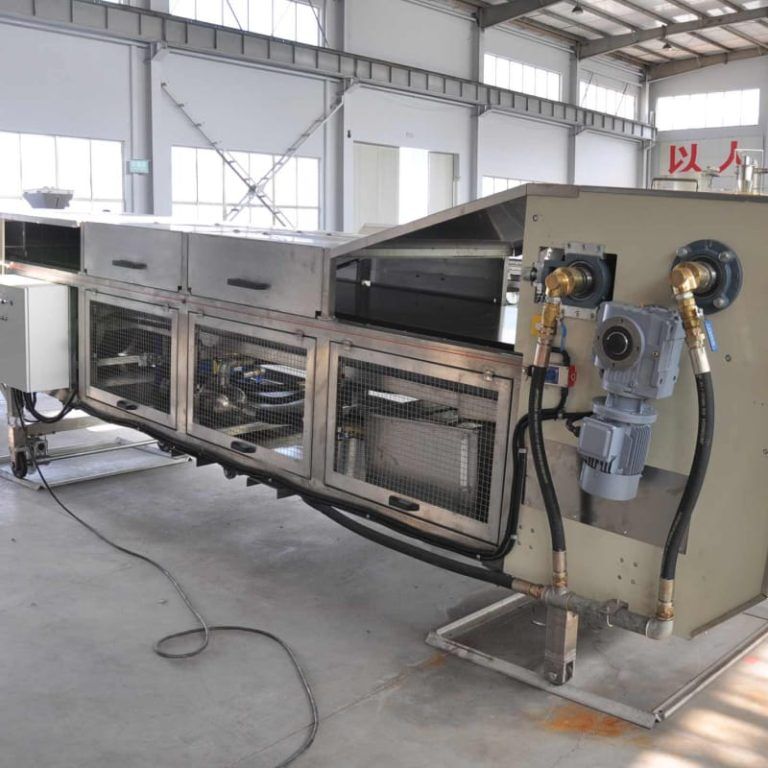

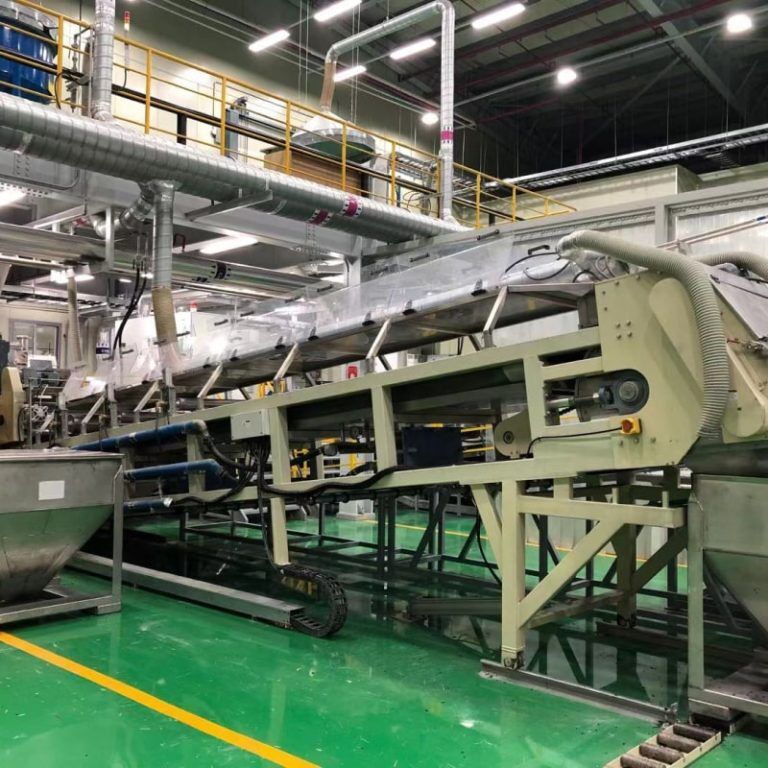

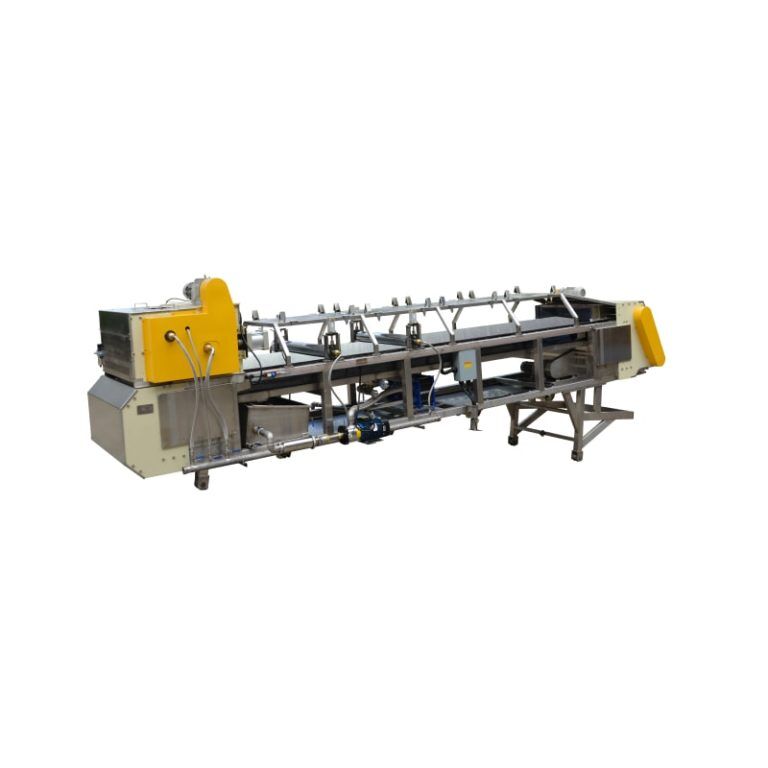

Stainless-Steel Cooling Belt is composed of cooling rollers, stainless steel conveyor, crusher and cooling-water spraying system which is used to cool down stainless steel band. Thermo-melting material from extruder is rolled to be sheet for 1-2mm by cooling rollers, and being cooled down on the stainless steel conveyor to ambient temperature, then being crushed into chips and discharged.
Product characteristics:
ยทTop-quality stainless steel band is adopted to bear dynamic tension force and temperature variation for long working time.
ยทChip thickness is adjustable and size is uniform.
ยทNo contamination on chips.
ยทComprehensive safety protection system.
ยทEasy clean and maintenance.
ยทHigh reliability
ยทDesign of eliminating wrinkle
| Model | Output(kg/h) | Diameter of roller (mm) | Belt Length(mm) | Belt width(mm) | Drive Power(kw) | Roller power(kw๏ผ | Crusher Power๏ผkw) | DimensionL*W*H(mm) |
| CCB-400 | 400 | 420 | 4000 | 800 | 0.75 | 1.5 | 1.1 | 6400x1300x1800 |
| CCB-600 | 600 | 420 | 6000 | 1000 | 0.75 | 1.5 | 1.1 | 7200x1700x2350 |
| CCB-1000 | 1000 | 450 | 8000 | 1200 | 1.5 | 1.5 | 1.1 | 8400x2000x2510 |
| CCB-1500 | 1500 | 450 | 9000 | 15000 | 1.5 | 1.5 | 1.1 | 8400x2000x2200 |
| CCB-2000 | 2000 | 450 | 11000 | 15000 | 1.5 | 1.5 | 1.1 | 12200x2440x2520 |
