Introduction
Cooling conveyor belts are key in powder coating lines. They stabilize flakes right after extrusion, making sure everything cools evenly before grinding.
A damaged belt? It causes flakes to stick, cool unevenly, pick up contaminants, or mess up the milling process. Spot the signs early, replace it properly, and skip unnecessary downtime.

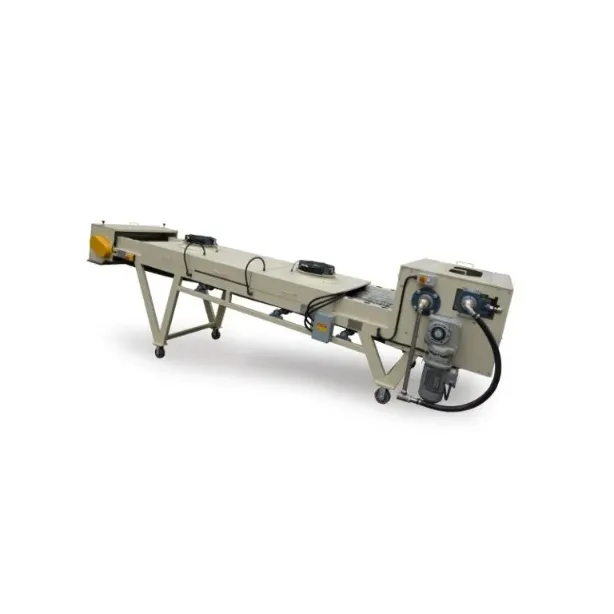

Why the Cooling Conveyor Belt Matters in Powder Coating Lines
What the Cooling Stage Really Does
The cooling stage keeps flakes from smearing or clumping while still semi-melted. It sets the right thickness for stable milling in an ACM setup. Plus, it locks in color and gloss so the final powder looks consistent batch after batch.
Without solid cooling, flakes might warp or bond oddly. That throws off the whole line. Operators notice it first in how the material handles downstream.
The Hidden Cost of Poor Cooling
Bad cooling wears down mills faster with abrasive flakes. Energy bills climb because the system works harder. Particle sizes end up all over the place, leading to rework or scrap.
Systems engineered by MPMtek often emphasize stable cooling as a key quality factor. It pays off in fewer headaches later.
Think about it: a small dip in cooling efficiency can snowball into bigger issues. Mills grind unevenly, and suddenly quality control flags more batches.
Signs It’s Time to Replace the Cooling Conveyor Belt
Physical Belt Damage
Look for cracks along the edges or fraying that shows up after heavy use. Surface hardening happens over time, making the belt brittle. Scratches on the belt transfer right to the flakes, ruining their finish.
These signs don’t appear overnight. They build up, but catch them during routine checks to avoid surprises.
Cooling Performance Drops
Flakes start overheating, even with the same settings. They stick to the belt, forcing stops for cleaning. Thickness varies across the conveyor, which means inconsistent cooling.
It’s frustrating when this happens mid-run. Production slows, and operators spend more time scraping residue.
Productivity Symptoms
Operators clean the belt more often than usual. Reject rates spike from flawed flakes. Mill loads increase because unstable flakes demand extra power.
These are red flags. Ignore them, and downtime adds up fast. Better to plan a replacement than deal with emergencies.
Common Causes of Cooling Belt Wear
Thermal Stress & Repeated Heating Cycles
Heat cycles expand and contract the belt material constantly. Over months, this leads to fatigue. High temperatures accelerate breakdown, especially in non-stop operations.
Plants running 24/7 see this quicker. It’s just the nature of the beast in powder coating.
Poor Belt Alignment or Tensioning
Misaligned belts rub against guides, wearing edges prematurely. Loose tension causes slipping; too tight, and it strains the material.
Simple fixes like regular adjustments prevent a lot of this. But skip them, and wear ramps up.
Resin Types and Additives That Accelerate Wear
High-Tg resins hit the belt harder with their heat resistance. Metallic pigments create micro-scratches as they pass through.
Some formulations are tougher on equipment. Switching resins? Watch how the belt holds up.
Some manufacturers, including MPMtek, use improved belt coatings to slow down thermal oxidation. It makes a difference in longevity.
Operators sometimes overlook additive effects until wear shows. A quick resin audit can spotlight risks.
When Replacement Becomes Inevitable
Set inspection thresholds based on visible wear or performance dips. Many plants follow hour based cycles, like every 5,000 hours, depending on load.
Track quality KPIs: flake thickness should stay uniform, and belt surfaces need to remain smooth. Dip below targets? Time to replace.
Don’t wait for total failure. Proactive swaps keep lines humming. Some setups log belt hours automatically, which helps.
How to Replace a Cooling Conveyor Belt Step by Step
Replacing isn’t rocket science, but do it wrong and problems follow. Follow these steps for a clean switch.
Shut Down and Secure the Line: First, cool the extruder fully to avoid burns or damage. Follow lock-out/tag-out procedures to keep everyone safe. Double-check power sources. It’s easy to miss one in a busy plant.
Remove Tension and Release the Old Belt: Loosen the tension assembly carefully. Watch out for heater zones and side guides that might snag. Slide the old belt off. Inspect the rollers while you’re at it – sometimes they need a clean too.
Install the New Belt: Center the new belt on the conveyor frame. Use the supplier’s recommended tension values to set it right. Make sure it tracks straight from the start. A crooked install leads to uneven wear fast.
Run the Line at Low Load to Test: Start slow. Observe how the belt tracks under light operation. Verify cooling airflow and roll pressure. Flakes should come out cleaner and more uniform now.
If something feels off, adjust before ramping up. Better safe than scrambling later.
After Replacement: What to Calibrate
Belt Speed
Match speed to the flake cooling curves for best results. Too fast, and smears appear; too slow, production drags. Test runs help dial it in. Flakes need time to set properly.
Airflow & Exhaust Settings
Boost airflow to prevent condensation or resin fogging on the belt. Exhaust pulls away vapors that could build up. Get this wrong, and residues form quicker.
Pressure of the Upper Roller (if applicable)
Set pressure to avoid crushing flakes. It should press just enough for smooth surfaces. High pressure flattens them too much; low, and they don’t form right. Calibrate based on resin type.
Preventive Maintenance Tips to Extend Belt Life
Daily / Weekly Checklist
Clean off resin build up before it hardens. Check belt temperature distribution across the width. Verify tension – it shifts with use. These quick tasks add up to longer life.
Operators swear by daily wipes. It cuts down on bigger cleans.
Monthly Maintenance
Correct alignment to prevent side wear. Use polarized light for surface inspections; it spots micro wear early.
Log findings. Trends show when issues brew.
Operator Habits That Keep the Belt Healthy
Don’t overfeed the extruder – it overloads cooling. Keep melt temperatures stable to avoid hot spots. Small habits like these matter. Rushed runs often lead to wear.
Technical teams at MPMtek often help customers build preventive routines to reduce belt downtime. It’s worth tapping into that expertise.
Conclusion
Swap out a cooling conveyor belt before it tanks quality or burdens operators. Right timing cuts major issues.
Installation and calibration done well extend life. Maintenance keeps powder stable.
A solid supplier ensures the belt and system mesh for long hauls. Stay on top of it, and production stays steady.
FAQ
Q: How do I know it’s time to change the cooling belt?
Look for cracks, edge fraying, flakes sticking to the belt, uneven flake thickness, or operators cleaning it way too often.
Q: What happens if I keep running a worn cooling belt?
Flakes smear or clump, particle size gets inconsistent, reject rate goes up, and the mill wears out faster and uses more energy.
Q: How long does a cooling conveyor belt usually last?
It depends on resin type and running hours, but many plants replace every 5,000–8,000 operating hours or when quality KPIs start slipping.
Q: Can I replace the belt myself or do I need a technician?
Experienced line operators can do it in 1–2 hours if they follow lock out/tag out and tension specs. First time? It’s safer to have someone who’s done it before.
